GeodesicGeometry

GeodesicGeometry is a Mathematica 6.0 package that allows you to visualize certain aspects of arbitrary spacetimes. It provides the following functions:

  • PlotNullSpray plots a spray of null geodesics.
  • PlotNullBundle plots a bundle of null geodesics.
  • PlotTimelikeSpray plots a spray of timelike geodesics.
  • PlotTimelikeBundle plots a bundle of timelike geodesics.
  • PlotNullCone plots the surfaces made up of all null vectors in the tangent space at the position specified.
  • PlotPathWithNullCones plots a path interpolating the given positions along with the corresponding cones at every point.

Download

GeodesicGeometry is available as an archive containing a Mathematica package: GeodesicGeometry-0.05.tar.bz2

Examples

Minkowski Spacetime

To visualize the Minkowski spacetime, we first load the package and then construct a GeodesicGeometry object from the line element:

Needs["GeodesicGeometry`"]

minkowski = GeodesicGeometry[
   {t, x, y, z},
   {dt, dx, dy, dz},
   dt^2 - dx^2 - dy^2 - dz^2];

We can use this object to plot, say, all null geodesics emanating from the origin with their initial velocity vector evenly distributed in the xyt hypersurface:

PlotNullSpray[minkowski, {0, 0, 0, 0},
 Table[{Cos[v], Sin[v], 0}, {v, 0, 2 \[Pi], \[Pi]/8}],
 ParameterRange -> {0, 10}, PlotCoordinates -> {x, y, t}]

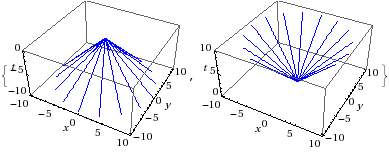

Null geodesics in Minkowski spacetime

The first parameter of PlotNullSpray is the object constructed above. The second one is the position in spacetime the geodesics should start at. The third one is the so called table of initial velocity templates. When given in the form of a list of three-element lists like above, it specifies the spatial components of the initial velocities of the geodesics. The missing temporal component is chosen in such a way that the length of the whole vector is null. The resulting bundles of geodesics represent the past- and the future-directed solutions.

We can also plot light cones:

PlotNullCone[minkowski, {0, 0, 0, 0}, PlotCoordinates -> {x, y, t},
 SolveCoordinate -> t]

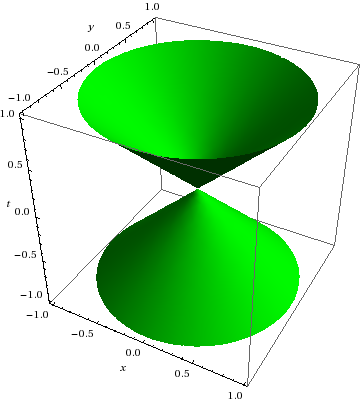

Light cone in Minkowski spacetime

The SolveCoordinate option specifies which variable the cone equation should be solved for. Often, some choices of solve variables yield better results than others.

Gödel spacetime

Let's take a look at a more interesting spacetime, Gödel's universe:

Needs["GeodesicGeometry`"]
Needs["VectorAnalysis`"]

goedelCylindrical = GeodesicGeometry[
   {s, r, \[Phi], z},
   {ds, dr, d\[Phi], dz},
   ds^2 - dr^2 - dz^2 + (Sinh[r]^4 - Sinh[r]^2) d\[Phi]^2 +
    2 Sqrt[2] Sinh[r]^2 d\[Phi] ds];

Geodesics emanating from near the origin:

start = {0, 0.00001, 0, 0};
PlotNullSpray[goedelCylindrical, start,
  Table[{Cos[v], Sin[v]/start[[2]], 0}, {v, 0, 2 \[Pi], \[Pi]/16}],
  ParameterRange -> {0, 4},
  PlotCoordinates -> {r, \[Phi], s},
  PlotCoordinateTransformation -> (CoordinatesToCartesian[#1, Cylindrical] &)][[2]]

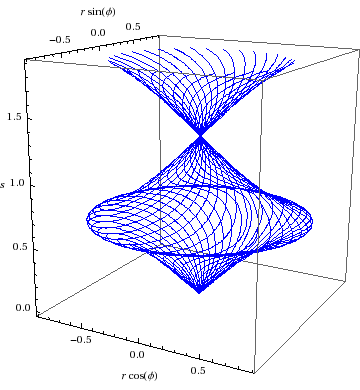

Null geodesics in Gödel spacetime

Null and timelike geodesics (blue and red, respectively) emanating from the same point:

nullSpray =
 PlotNullSpray[goedelCylindrical, {0, 0.8, 0, 0},
  Table[{Cos[v], Sin[v], 0}, {v, 0, 2 \[Pi], \[Pi]/8}],
  ParameterRange -> {0, 3},
  PlotCoordinates -> {r, \[Phi], s},
  PlotCoordinateTransformation -> (CoordinatesToCartesian[#1, Cylindrical] &)];
timelikeSpay =
 PlotTimelikeSpray[goedelCylindrical, {0, 0.8, 0, 0},
  Table[{Cos[v], Sin[v], 0}, {v, 0, 2 \[Pi], \[Pi]/8}],
  ParameterRange -> {0, 2},
  PlotCoordinates -> {r, \[Phi], s},
  PlotCoordinateTransformation -> (CoordinatesToCartesian[#1, Cylindrical] &)];
Show[nullSpray[[2]], timelikeSpay[[2]], PlotRange -> Automatic]

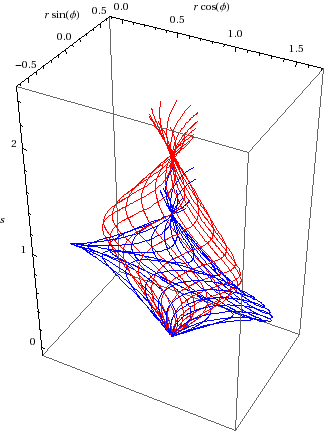

Null and timelike geodesics in Gödel spacetime

Some light cones:

conesCircular =
 Table[
   PlotNullCone[goedelCylindrical, {0, 1.2, \[Phi]start, 0},
     PlotCoordinates -> {r, \[Phi], s},
     SolveCoordinate -> s,
     PlotRangeOffsets -> 0.2,
     PlotCoordinateSystem -> Cylindrical],
   {\[Phi]start, -3/4 \[Pi], \[Pi], \[Pi]/ 4}];
conesRadial =
 Table[
   PlotNullCone[goedelCylindrical, {0, rstart, \[Phi]start, 0},
     PlotCoordinates -> {r, \[Phi], s},
     SolveCoordinate -> s,
     PlotRangeOffsets -> {0.2, 0.2, If[rstart == 0, \[Pi], 0.2], 0.2},
     PlotCoordinateSystem -> Cylindrical],
   {rstart, 0, 0.6, 0.6}, {\[Phi]start, 0, \[Pi], \[Pi]}];
Show[{conesCircular, conesRadial}, PlotRange -> All]

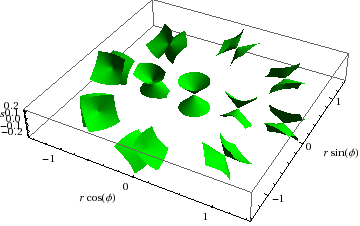

Light cones in Gödel spacetime

And finally a famous combination of geodesics and light cones:

spray = PlotNullSpray[goedelCylindrical, start,
    Table[{Cos[v], Sin[v]/start[[2]], 0}, {v, 0, 2 \[Pi], \[Pi]/8}],
    ParameterRange -> {0, 3.5},
    PlotCoordinates -> {r, \[Phi], s},
    PlotCoordinateTransformation -> (CoordinatesToCartesian[#1, Cylindrical] &)][[2]];

cones = Table[
   PlotNullCone[goedelCylindrical, position,
    PlotCoordinates -> {r, \[Phi], s},
    SolveCoordinate -> s,
    PlotRangeOffsets -> {0.1, 0.1, If[Abs[position[[2]]] < 0.1, \[Pi], 0.1/position[[2]]], 0.1},
    PlotCoordinateSystem -> Cylindrical],
    {position, {{0, start[[2]], 0, 0}, {1.3, start[[2]], 0, 0},
    {0.63, 0.88, 0, 0}, {0.63, 1.32, 0, 0}, {0.63, 0.44, 0, 0},
    {0.63, start[[2]], 0, 0}, {0.63, -0.44, 0, 0},
    {0.63, -0.88, 0, 0}, {0.63, -1.32, 0, 0},
    {0.63, 1.32, 1/2 \[Pi], 0}, {0.63, 1.32, 3/2 \[Pi], 0}}}];

ccc = ParametricPlot3D[
   CoordinatesToCartesian[{1.32, \[Phi], 0.63}, Cylindrical],
   {\[Phi], 0, 2 \[Pi]}, PlotStyle -> Directive[Red, Thick]];

Show[{spray, cones, ccc}, PlotRange -> All,
 ViewPoint -> {1.3, -3.2, 0.8}]

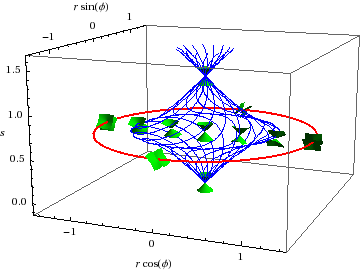

Geodesics and light cones in Gödel spacetime
